# Goal
Create a "profile", i.e. a JSON file, to be used by the script that mass converts *.glb to *.png

## Introduction
This exercise only requires that you launch a small HTTP server in a console.  Otherwise, everything involved is handled through the HTML page lab.html.  You will interact with lab.html's 3D rendering of a glb file that is included with this project.

## Steps
Open a browser or a new window of the browser (Ctrl-n in Firefox) and resize the browser to a small rectangle.  You are reducing the size so as to mimic what the PNG cell in the manifest table will look like.  For example, this reduced window
is 521 × 432 pixels.
![](20260304_101754_Wed.png)

In a console:

    cd ~/work/Voron/voronstl/web
    python3 -m http.server 8001

You should have a console that looks like this:

![](20260304_101254_Wed.png)

It is necessary to start the web server within the "web" directory as that directory
will be servers "root".


Visit:

     http://localhost:8001/lab.html


You will see a zoomed-in image:

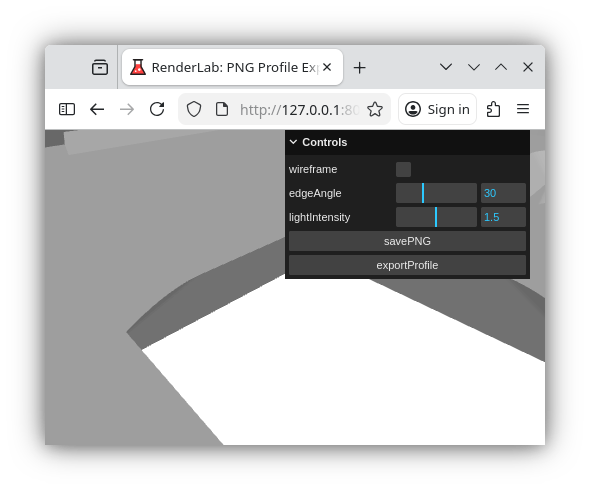

![](Screenshot_20260304_102153_AM_Wed-1.png)

Zoom out until the entire part fits within the window.

Click the Controls bar to collapse the sub menus.

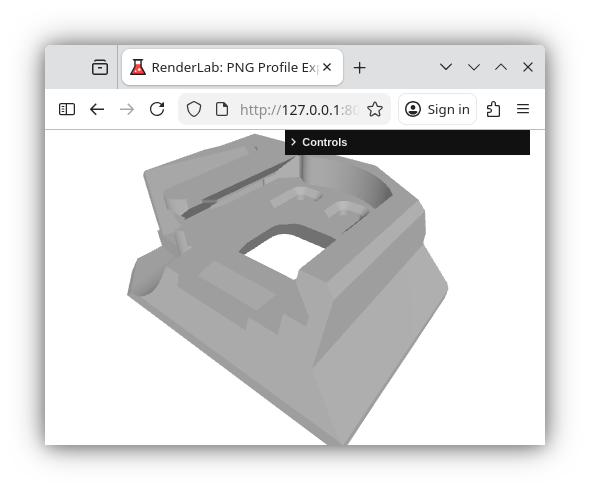

![](Screenshot_20260304_102435_AM_Wed.png)
Move the object to center it in the window: Shift + left mouse button.  You want to have the entire part fit within the view and be cenetered.

Click Controls bar to open the sub menus.  Adjust the lighintensity to a high value, if not the maximum values.  This will cause the image to go lighter allowing for contrast with shadows that help discern the part.

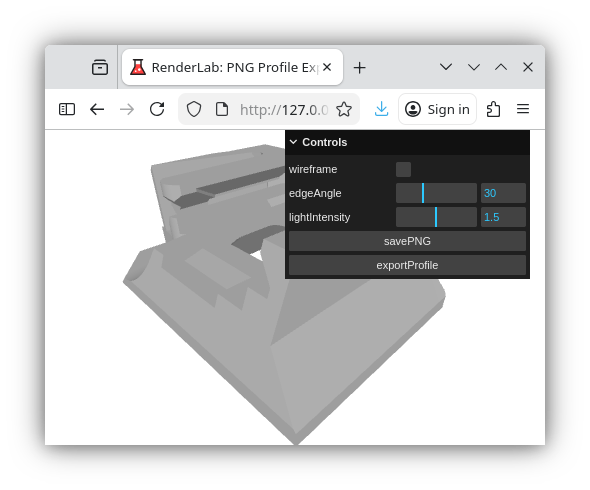

![](Screenshot_20260304_154311_PM_Wed.png)
Optional: Save the PNG for your own reference.

Click "Export Profile" and save your current settings.

![](20260304_102737_Wed.png)

You now have a specification on sizing and angles which may work well for all of the other parts.  Note: I took mine and applied the specifications saved above for a mass PNG creation and all the others looked very good.

### Additional Information:
Here's what a JSON file looks like:

<table style="width:100%; table-layout:fixed;">
<tr>
<th>Image</th>
<th>Description</th>
</tr>

<tr>
<td style="width:50%; vertical-align:top;">
<img src="20260304_102919_Wed.png" >
</td>

<td style="width:50%; vertical-align:top;"><pre style="white-space:pre-wrap; overflow:auto; max-width:100%;">jlpoole@jp ~/work/Voron/voronstl/web $ jq . out/three_profile_20260304_102657.json
{
  "provenance": "lab.html exportProfile Wed Mar 04 2026 10:26:57 GMT-0800 (Pacific Standard Time)",
  "output": {
    "width": 500,
    "height": 315,
    "pixelRatio": 1
  },
  "scene": {
    "background": 16777215
  },
  "camera": {
    "type": "PerspectiveCamera",
    "fov": 50,
    "near": 0.1,
    "far": 1000,
    "position": [
      11.93432933230491,
      11.71721921868296,
      13.265804443912849
    ],
    "up": [
      0,
      1,
      0
    ]
  },
  "controls": {
    "target": [
      2.075876663103527,
      -2.147814989328729,
      0.7122034073683343
    ]
  },
  "renderParams": {
    "wireframe": false,
    "edgeAngle": 30,
    "lightIntensity": 1.5
  },
  "lights": {
    "directional": {
      "position": [
        5,
        5,
        5
      ],
      "intensity": 1.5
    },
    "ambient": {
      "intensity": 0.6
    }
  }
}
jlpoole@jp ~/work/Voron/voronstl/web $

</td>
</tr>
</table>

## ChatGPT's analysis of what is important for consistency

Here is a response from ChatGPT that summarizes what variables are captured and saved so that they can be used to repeat the same type of transformation of *.glb to PNG.

## Response

Good — now you’re at the point where it’s worth making the capture **repeatable** across a whole directory of GLBs.

In practice, you want to “freeze” *everything that affects the pixels* and treat the GLB as the only variable.

## What to save (so every PNG is consistent)

### 1) Camera pose and projection

Save:

* `camera.position` (x,y,z)
* `camera.up` (x,y,z)
* `controls.target` (x,y,z) if you’re using OrbitControls
* `camera.fov`, `camera.near`, `camera.far`
* (optional) whether you used perspective vs orthographic

These define “where the viewer is” and are the biggest determinant of repeatability.

### 2) Output framing rules (per-model normalization)

You need a deterministic rule for “how big the part appears in frame”, otherwise parts with different sizes will look random.

Two common strategies:

**A. Fit-to-frame (recommended for mass renders)**
For each GLB:

* compute `Box3` bounds
* compute `center` and `size`
* set `controls.target = center`
* set camera distance so the whole bounding box fits (using FOV + max dimension)
* optionally lock azimuth/elevation (so every part is viewed from the same angle)

This yields consistent “fill” and eliminates manual tuning.

**B. Fixed camera (only if all parts are same scale and you want exact same viewpoint)**
Works if your GLBs are all in the same coordinate system/scale and similarly sized.

### 3) Lighting rig

Save:

* light types (Directional/Hemisphere/Ambient)
* each light’s `position`, `intensity`, `color`
* shadow settings if used

Your current screenshot shows a simple shaded render; keep lighting stable or you’ll get different highlight/shadow shapes across parts.

### 4) Renderer and capture settings

Save:

* `width`, `height`
* `devicePixelRatio` you used (often set explicitly for determinism)
* `renderer.toneMapping`, `outputColorSpace` (Three.js r152+ uses `renderer.outputColorSpace = THREE.SRGBColorSpace`)
* `renderer.setClearColor()` (white) and alpha behavior
* `preserveDrawingBuffer: true` (for browser capture)
* whether you use `physicallyCorrectLights` (if you do, keep it constant)

### 5) Material overrides / wireframe settings

If you’re overriding materials for “clay render” or wireframe, save:

* your override material parameters (`MeshStandardMaterial` vs `MeshPhongMaterial`, roughness/metalness)
* edge/wire settings (`EdgesGeometry` threshold angle, line material linewidth/color)

### 6) Background / staging

Save:

* background color (white)
* whether you add a ground plane, axes, environment map, etc.

Even “invisible” helpers can affect auto-framing if they’re included in bounds—so exclude them from bounds computation.

---

## The best thing to save: a small “render profile” JSON

Put this in a file like `render_profile.json`:

* canvas size
* camera angle (azimuth/elevation) OR explicit camera position
* fit-to-frame padding factor (e.g., 1.15)
* light positions/intensities
* material mode (`source`, `clay`, `wireframe`, `edges`)
* background color

Then your batch renderer (browser or headless) loads profile + GLB and produces PNG.

Example shape (conceptually):

```json
{
  "output": { "w": 1600, "h": 1200, "pixelRatio": 1 },
  "background": "#ffffff",
  "camera": { "fov": 35, "near": 0.01, "far": 1000, "azimuth": -35, "elevation": 20, "fitPadding": 1.15 },
  "lights": [
    { "type": "dir", "pos": [3,5,2], "intensity": 2.8 },
    { "type": "hem", "sky": "#ffffff", "ground": "#666666", "intensity": 0.6 }
  ],
  "materialMode": "clay"
}
```

---

## How to mass-create PNGs (two viable routes)

### Route 1: Headless batch (best)

Use **node + headless WebGL** (or Puppeteer driving Chrome) to render each GLB with the profile and write PNGs. This is what you want if you’re doing hundreds/thousands.

### Route 2: Browser batch page (simpler)

A page that:

* loads a list of GLB URLs
* applies the profile
* renders each, downloads PNG automatically (or zips them)

This is simpler but less pleasant at scale.

---

## One key question that determines the “right” profile

Do you want your PNGs to be:

* **same camera angle + fit-to-frame** (parts all fill the image similarly), or
* **same absolute camera** (so relative size differences are visible)?

If you tell me which you want, I’ll give you a concrete “profile JSON + camera fit math + batch driver” that matches it.
