Goal

Create a "profile", i.e. a JSON file, to be used by the script that mass converts *.glb to *.png

Introduction

This exercise only requires that you launch a small HTTP server in a console. Otherwise, everything involved is handled through the HTML page lab.html. You will interact with lab.html's 3D rendering of a glb file that is included with this project.

Steps

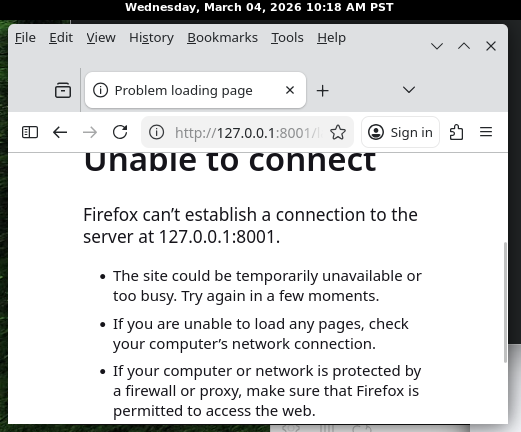

Open a browser or a new window of the browser (Ctrl-n in Firefox) and resize the browser to a small rectangle. You are reducing the size so as to mimic what the PNG cell in the manifest table will look like. For example, this reduced window is 521 × 432 pixels.

In a console:

cd ~/work/Voron/voronstl/web
python3 -m http.server 8001

You should have a console that looks like this:

It is necessary to start the web server within the "web" directory as that directory will be servers "root".

Visit:

 http://localhost:8001/lab.html

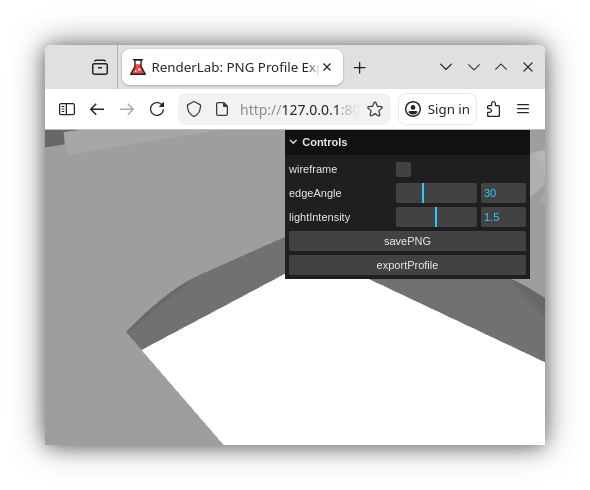

You will see a zoomed-in image:

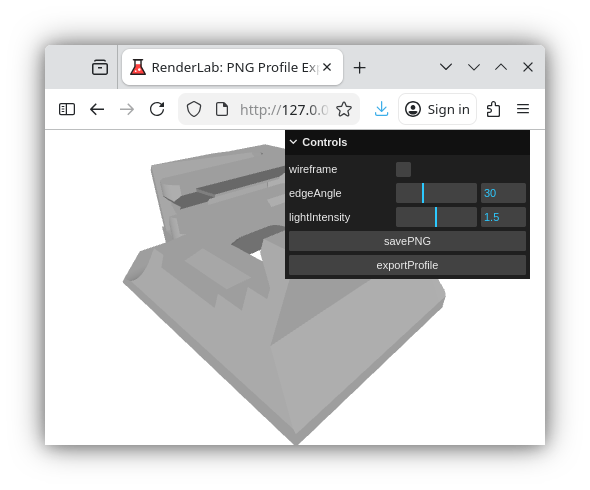

Zoom out until the entire part fits within the window.

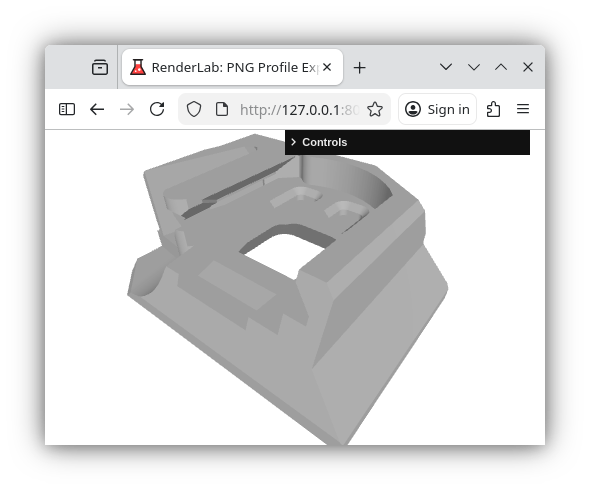

Click the Controls bar to collapse the sub menus. Move the object to center it in the window: Shift + left mouse button. You want to have the entire part fit within the view and be cenetered.

Click Controls bar to open the sub menus. Adjust the lighintensity to a high value, if not the maximum values. This will cause the image to go lighter allowing for contrast with shadows that help discern the part. Optional: Save the PNG for your own reference.

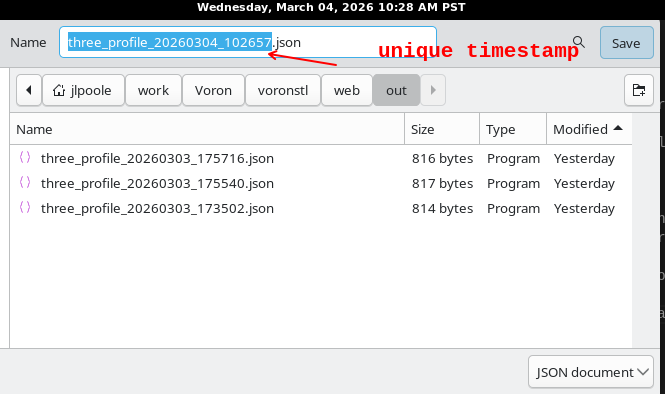

Click "Export Profile" and save your current settings.

You now have a specification on sizing and angles which may work well for all of the other parts. Note: I took mine and applied the specifications saved above for a mass PNG creation and all the others looked very good.

Additional Information:

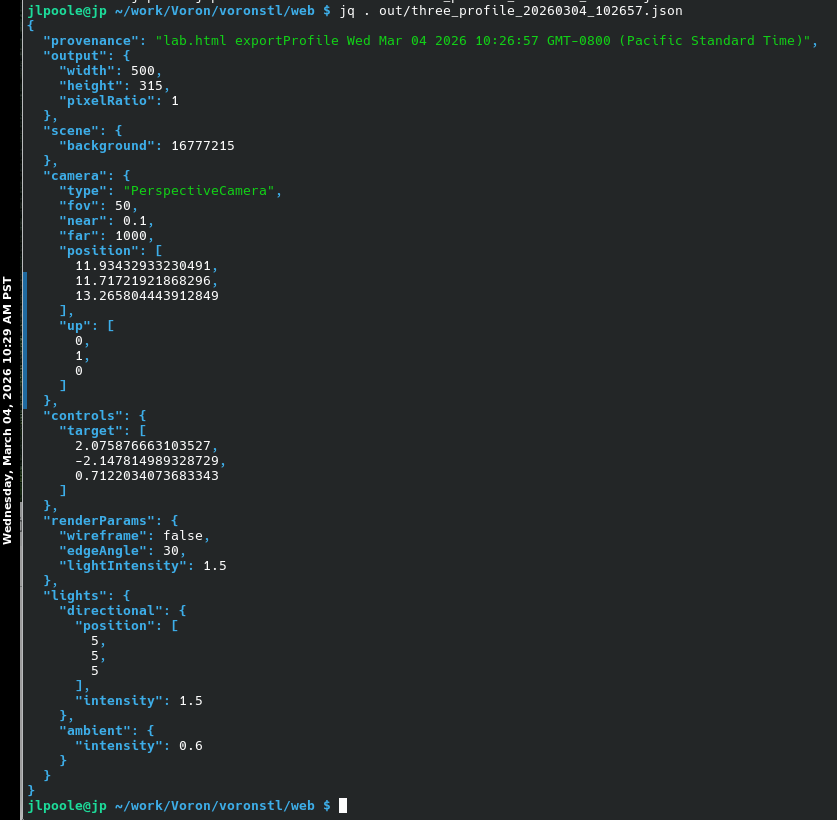

Here's what a JSON file looks like:


Description

jlpoole@jp ~/work/Voron/voronstl/web $ jq . out/three_profile_20260304_102657.json { "provenance": "lab.html exportProfile Wed Mar 04 2026 10:26:57 GMT-0800 (Pacific Standard Time)", "output": { "width": 500, "height": 315, "pixelRatio": 1 }, "scene": { "background": 16777215 }, "camera": { "type": "PerspectiveCamera", "fov": 50, "near": 0.1, "far": 1000, "position": [ 11.93432933230491, 11.71721921868296, 13.265804443912849 ], "up": [ 0, 1, 0 ] }, "controls": { "target": [ 2.075876663103527, -2.147814989328729, 0.7122034073683343 ] }, "renderParams": { "wireframe": false, "edgeAngle": 30, "lightIntensity": 1.5 }, "lights": { "directional": { "position": [ 5, 5, 5 ], "intensity": 1.5 }, "ambient": { "intensity": 0.6 } } } jlpoole@jp ~/work/Voron/voronstl/web $

ChatGPT's analysis of what is important for consistency

Here is a response from ChatGPT that summarizes what variables are captured and saved so that they can be used to repeat the same type of transformation of *.glb to PNG.

Response

Good — now you’re at the point where it’s worth making the capture repeatable across a whole directory of GLBs.

In practice, you want to “freeze” everything that affects the pixels and treat the GLB as the only variable.

What to save (so every PNG is consistent)

1) Camera pose and projection

Save:

• camera.position (x,y,z)
• camera.up (x,y,z)
• controls.target (x,y,z) if you’re using OrbitControls
• camera.fov, camera.near, camera.far
• (optional) whether you used perspective vs orthographic

These define “where the viewer is” and are the biggest determinant of repeatability.

2) Output framing rules (per-model normalization)

You need a deterministic rule for “how big the part appears in frame”, otherwise parts with different sizes will look random.

Two common strategies:

A. Fit-to-frame (recommended for mass renders) For each GLB:

• compute Box3 bounds
• compute center and size
• set controls.target = center
• set camera distance so the whole bounding box fits (using FOV + max dimension)
• optionally lock azimuth/elevation (so every part is viewed from the same angle)

This yields consistent “fill” and eliminates manual tuning.

B. Fixed camera (only if all parts are same scale and you want exact same viewpoint) Works if your GLBs are all in the same coordinate system/scale and similarly sized.

3) Lighting rig

Save:

• light types (Directional/Hemisphere/Ambient)
• each light’s position, intensity, color
• shadow settings if used

Your current screenshot shows a simple shaded render; keep lighting stable or you’ll get different highlight/shadow shapes across parts.

4) Renderer and capture settings

Save:

• width, height
• devicePixelRatio you used (often set explicitly for determinism)
• renderer.toneMapping, outputColorSpace (Three.js r152+ uses renderer.outputColorSpace = THREE.SRGBColorSpace)
• renderer.setClearColor() (white) and alpha behavior
• preserveDrawingBuffer: true (for browser capture)
• whether you use physicallyCorrectLights (if you do, keep it constant)

5) Material overrides / wireframe settings

If you’re overriding materials for “clay render” or wireframe, save:

• your override material parameters (MeshStandardMaterial vs MeshPhongMaterial, roughness/metalness)
• edge/wire settings (EdgesGeometry threshold angle, line material linewidth/color)

6) Background / staging

Save:

• background color (white)
• whether you add a ground plane, axes, environment map, etc.

Even “invisible” helpers can affect auto-framing if they’re included in bounds—so exclude them from bounds computation.

---

The best thing to save: a small “render profile” JSON

Put this in a file like render_profile.json:

• canvas size
• camera angle (azimuth/elevation) OR explicit camera position
• fit-to-frame padding factor (e.g., 1.15)
• light positions/intensities
• material mode (source, clay, wireframe, edges)
• background color

Then your batch renderer (browser or headless) loads profile + GLB and produces PNG.

Example shape (conceptually):

{
  "output": { "w": 1600, "h": 1200, "pixelRatio": 1 },
  "background": "#ffffff",
  "camera": { "fov": 35, "near": 0.01, "far": 1000, "azimuth": -35, "elevation": 20, "fitPadding": 1.15 },
  "lights": [
    { "type": "dir", "pos": [3,5,2], "intensity": 2.8 },
    { "type": "hem", "sky": "#ffffff", "ground": "#666666", "intensity": 0.6 }
  ],
  "materialMode": "clay"
}

---

How to mass-create PNGs (two viable routes)

Route 1: Headless batch (best)

Use node + headless WebGL (or Puppeteer driving Chrome) to render each GLB with the profile and write PNGs. This is what you want if you’re doing hundreds/thousands.

Route 2: Browser batch page (simpler)

A page that:

• loads a list of GLB URLs
• applies the profile
• renders each, downloads PNG automatically (or zips them)

This is simpler but less pleasant at scale.

---

One key question that determines the “right” profile

Do you want your PNGs to be:

• same camera angle + fit-to-frame (parts all fill the image similarly), or
• same absolute camera (so relative size differences are visible)?

If you tell me which you want, I’ll give you a concrete “profile JSON + camera fit math + batch driver” that matches it.
