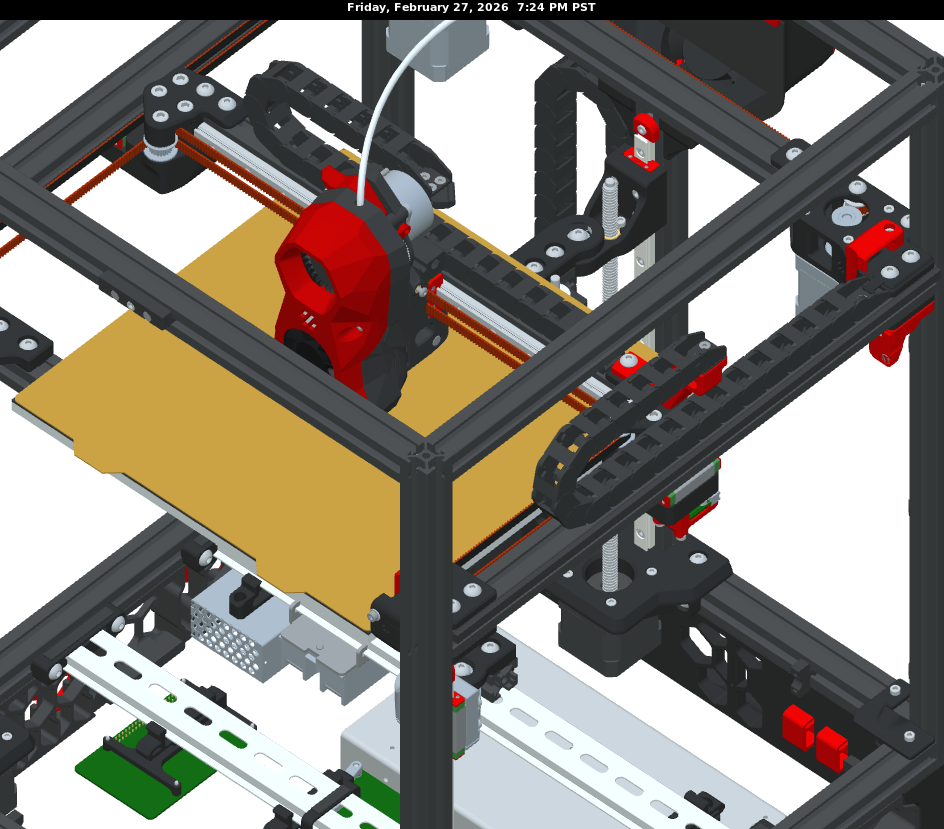

The above screenshot is a 3 dimensional (“3D”) model of the Voron Trident 3D printer that can be viewed in a web browser and manipulated with a mouse to rotate, zoom, and move the model in its space. If you are viewing on a hand held device, e.g. a phone, then the model may take several minutes to load, or if you have a very old phone, the model may be too large to process. The model is 64Mbs.
Here’s the model which may take 5-10 seconds to load and render in a workstation browser:
Here is the URL: https://salemdata.us/3dviewer/#model=/models/voron/Trident_Assembly_v6.glb

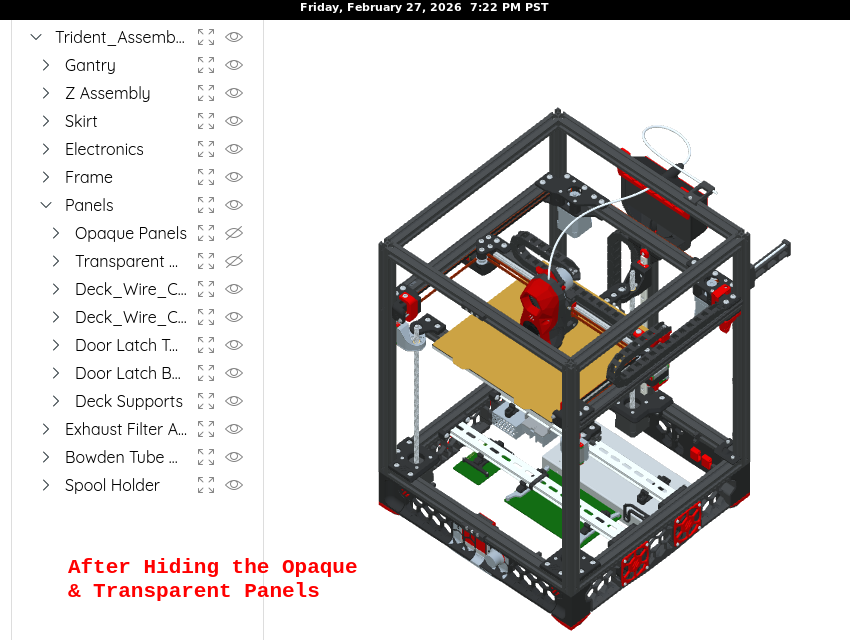

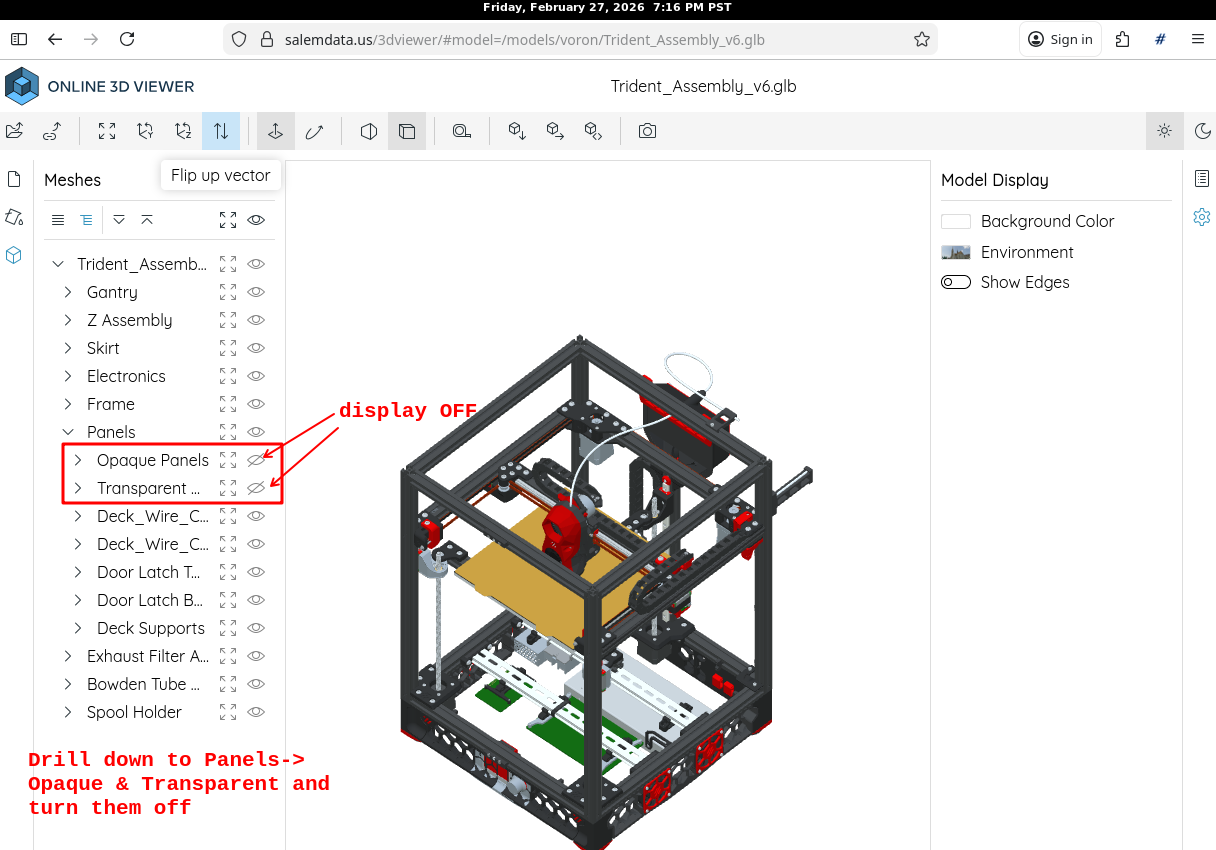

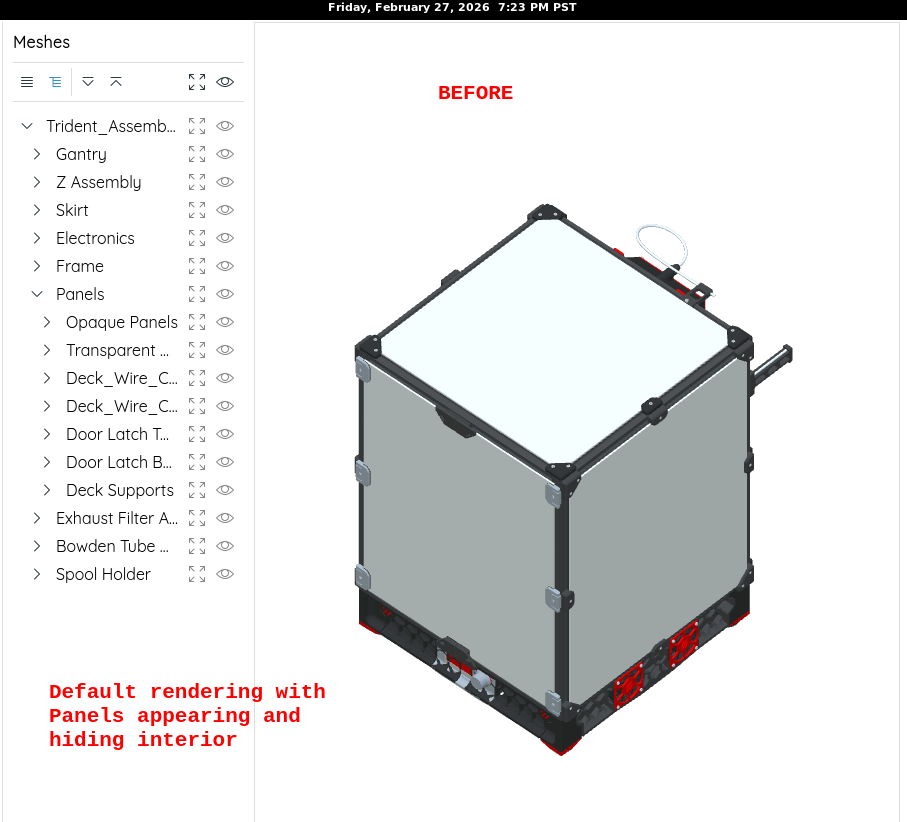

The clear panels enclosing the unit appear opaque when rendered, so go over to the left object tree and drill down to deactivate the display of those components by clicking the oval eye icon. Doing so will make the interior visible.
The STEP model was loaded into FreeCAD and then exported as a .glb – binary glTF (Graphics Library Transmission Format), see https://en.wikipedia.org/wiki/GlTF.
