🌟LilyGo T-Beam🌟

Overview

  • This page introduces the hardware parameters related to LilyGo T-Beam

Notes on use

  1. Please be sure to connect the antenna before transmitting, otherwise it is easy to damage the RF module

Product

Product SOC Flash PSRAM
T-Beam Meshtastic ESP32-D0WDQ6-V3 4MB(Quad-SPI) 8MB(Quad-SPI)
T-Beam SoftRF ESP32-D0WDQ6-V3 4MB(Quad-SPI) 8MB(Quad-SPI)

PlatformIO Quick Start

  1. Install the CH9102 USB bridge driver for the first time.
  2. Install Visual Studio Code and Python
  3. Search for the PlatformIO plugin in the Visual Studio Code extension and install it.
  4. After the installation is complete, you need to restart Visual Studio Code
  5. After restarting Visual Studio Code, select File in the upper left corner of Visual Studio Code -> Open Folder -> select the LilyGo-LoRa-Series directory
  6. Wait for the installation of third-party dependent libraries to complete
  7. Click on the platformio.ini file, and in the platformio column
  8. Select the board name you want to use in default_envs and uncomment it.
  9. Uncomment one of the lines src_dir = xxxx to make sure only one line works , Please note the example comments, indicating what works and what does not.
  10. Click the (✔) symbol in the lower left corner to compile
  11. Connect the board to the computer USB-C , Micro-USB is used for module firmware upgrade
  12. Click (→) to upload firmware
  13. Click (plug symbol) to monitor serial output
  14. If it cannot be written, or the USB device keeps flashing, please check the FAQ below

Arduino IDE quick start

  1. Install the CH9102 USB bridge driver for the first time.

  2. Install Arduino IDE

  3. Install Arduino ESP32

  4. Copy all folders in the lib directory to the Sketchbook location directory. How to find the location of your own libraries, please see here

    • Windows: C:\Users\{username}\Documents\Arduino
    • macOS: /Users/{username}/Documents/Arduino
    • Linux: /home/{username}/Arduino

  5. Open the corresponding example

    • Open the downloaded LilyGo-LoRa-Series
    • Open examples
    • Select the sample file and open the file ending with ino

  6. On Arduino Select the corresponding board in the IDE tool project and click on the corresponding option in the list below to select

    Name Value
    Board ESP32 Dev Module
    Port Your port
    CPU Frequency 240MHZ(WiFi/BT)
    Core Debug Level None
    Erase All Flash Before Sketch Upload Disable
    Events Run On Core1
    Flash Frequency 80MHZ
    Flash Mode QIO
    Flash Size 4MB(32Mb)
    JTAG Adapter Disabled
    Arduino Runs On Core1
    Partition Scheme Huge APP (3MB No OTA/1MB SPIFFS)
    PSRAM Enable
    Upload Speed 921600
    Programmer Esptool

  7. Please uncomment the utilities.h file of each sketch according to your board model ,e.g T_BEAM_SX1262,T_BEAM_SX1276,T_BEAM_SX1278, otherwise the compilation will report an error.

  8. Upload sketch

📍 Pins Map

Name GPIO NUM Free
SDA 21 ❌
SCL 22 ❌
OLED(SSD1306) SDA Share with I2C bus ❌
OLED(SSD1306) SCL Share with I2C bus ❌
GNSS(Ublox M6/M8) TX 12 ❌
GNSS(Ublox M6/M8) RX 34 ❌
LoRa(SX1276/SX1278) SCK 5 ❌
LoRa(SX1276/SX1278) MISO 19 ❌
LoRa(SX1276/SX1278) MOSI 27 ❌
LoRa(SX1276/SX1278) RESET 23 ❌
LoRa(SX1276/SX1278) DIO1 33 ❌
LoRa(SX1276/SX1278) DIO2 32 ❌
LoRa(SX1276/SX1278) CS 18 ❌
Button1 38 ❌
PMU (AXP2101) IRQ 35 ❌
PMU (AXP2101) SDA Share with I2C bus ❌
PMU (AXP2101) SCL Share with I2C bus ❌

🧑🏼‍🔧 I2C Devices Address

Devices 7-Bit Address Share Bus
OLED Display (SSD1306) 0x3C ✅️
Power Manager (AXP2101) 0x34 ❌

⚡ Electrical parameters

Features Details
🔗USB-C Input Voltage 3.9V-6V
⚡Charge Current 0-1024mA (Programmable)
🔋Battery Voltage 3.7V

⚡ PowerManage Channel

Channel Peripherals
DC1 ESP32
DC2 Unused
DC3 Unused
DC4 Unused
DC5 Unused
LDO1(VRTC) Unused
ALDO1 Unused
ALDO2 Radio
ALDO3 GPS
ALDO4 Unused
BLDO1 Unused
BLDO2 Unused
DLDO1 Unused
CPUSLDO Unused
VBACKUP GNSS Backup

Button Description

Channel Peripherals
PWR PMU button, customizable function
IO38 Customizable function
RST Reset button
  • The PWR button is connected to the PMU
    1. In shutdown mode, press the PWR button to turn on the power supply
    2. In power-on mode, press the PWR button for 6 seconds (default time) to turn off the power supply

LED Description

  • CHG LED

    1. If not controlled by the program, the default is always on when charging and off when fully charged
    2. This LED can be controlled by the program

  • PPS LED,

    1. The red LED near the GPS module cannot be turned off
    2. This LED cannot be turned off and is connected to the GPS PPS Pin. This LED flashes to indicate that the PPS pulse has arrived.

RF parameters

Features Details
RF Module SX1278/SX1276
Frequency range 868/915MHz
Transfer rate(LoRa) 0.018 K ～ 62.5 Kbps
Transfer rate(FSK) 0.6 K ～ 300 Kbps
Modulation FSK, GFSK, MSK, GMSK, LoRa,OOK

WiFi-IPEX

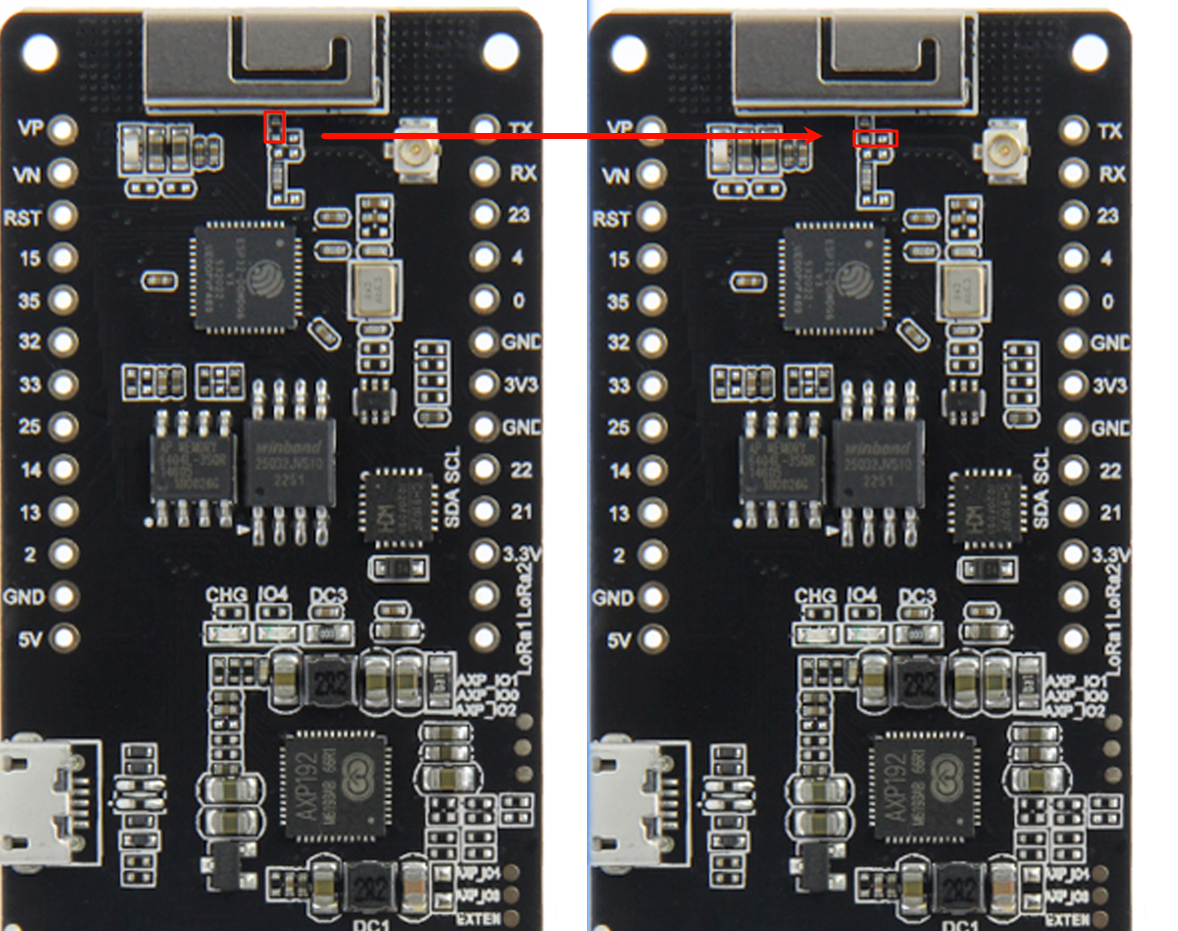

  • The following figure shows how to switch the onboard WIFI antenna to IPEX

WIFI-IPEX
